MP80 series integral hydraulic distributor
Classification:
Product Description
Overview
The MP80 hydraulic distributor works in hydraulic systems with flow rates up to 100L/MIN. It is suitable for pressure distribution and regulation in the hydraulic systems of agricultural and forestry tractors, bulldozers and other mobile machinery.
★ Hydraulic distributor with closed center designed for hydraulic system of pump with constant performance -Equipped with main relief valve and relief valve
★ Check valves provide proportional control of spool
★ Internal traffic distribution schemes are parallel
★ Three-and four-position spool valves
★ Manual spool control
★ Optional equipment with hydraulic lock
Characteristic
★ Closed center
★ Flow 80-100L/MIN
★ Rated inlet pressure up to 200BAR
★ Maximum pressure up to 250BAR at ports A and B
★ Number of spools-2 or 3
★ Manual control
Application
★ Agricultural tractor BELARUSXTZUMZ etc
★ Pipe hoisting machine ChTZ-URALTRAK
★ Forest tractor
★ Bulldozer
Technical Characteristics of Mp80 Series Integral Hydraulic Distributor
| Name |
MP80-4/1-222 Type MP80-4/4-222 Type |
MP80-4/1-111 MP80-4/1-333 |
MP80-4/1-444-4 MP80-4/2-444-4 MP80-4/3-444-4 |
| Type | Integral type, Closed center | ||
| Rated size，mm | 16 | ||
| Flow (rated)， l/min | 80 | ||
| Flow (Maximum)， l/min | 160 | ||
| Pressure (rated)， bar | 20 | ||
| Pressure (maximum)， bar | 25 | ||
| Number of spools | 3 | ||
| Valve core drive control | Lever | ||
| Type of relief valve | Differential | ||
| Weight， kg | 17,0 | ||

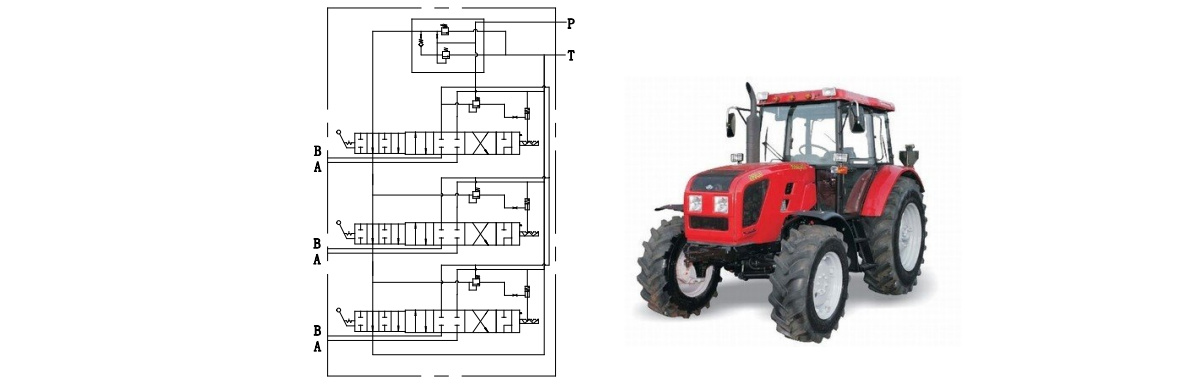

Functional model

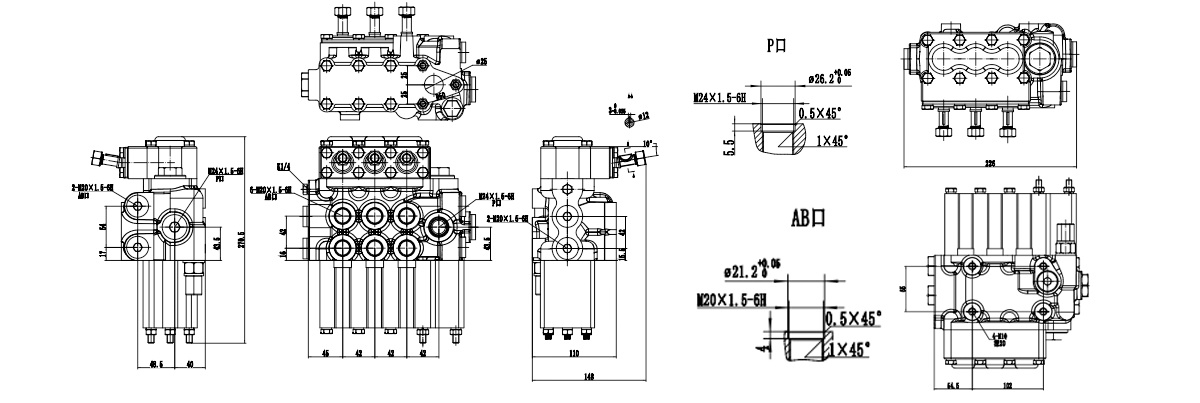

Shape and installation dimensions
