P80 Series Integral Multi-way Direction Valve
Classification:
Product Description
Application and characteristics
P80 series integral multi-way valve is a medium and high pressure integral multi-way valve imported from Europe by our company. Relief valve and one-way valve can be set on the valve according to customer's requirements Relief valve adjustable pressure one-way valve prevents oil from flowing back The slide valve function of the reversing valve has A, O, P, Y, etc. It can be combined at will. The reversing handle has two installation forms to facilitate the operation in different directions. The valve adopts parallel or series oil circuit design and has a pressure output port connected with other hydraulic components to provide power source The specially designed seal makes the sealing performance of the valve excellent The valve is widely used in hydraulic system of forklift trucks, sanitation vehicles, small loaders and other construction machinery.
Technical parameters
| Project | Parameter |
| Quota flow | 80L/min |
| Pressure (maximum)， MPa | 25MPa |
| Pressure (rated) | 20MPa |
| Working viscosity range | 15-75mm2/s |
| Temperature range | -40℃ -80℃ |
| Structure | Monolithic 1-7 links |
| Slide valve control | Manual |

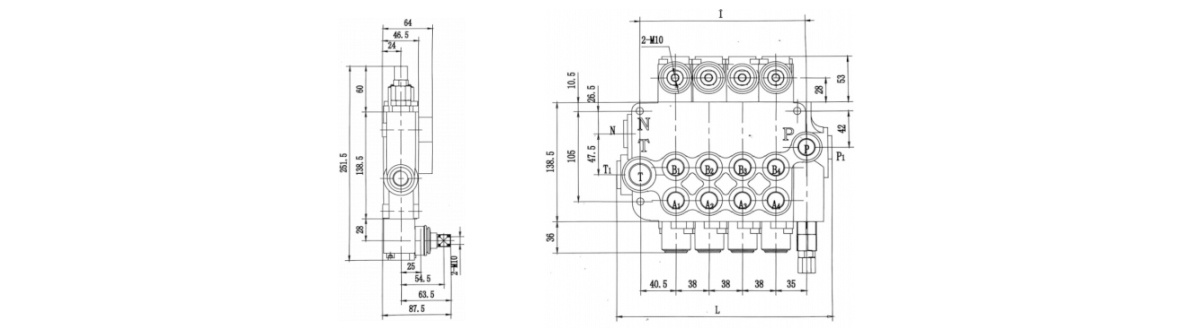

Shape and installation dimensions of P80 series integral multi-way reversing valves
| Connection number | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| I(mm) | 62 | 97 | 132 | 167 | 202 | 237 | 272 |
| L(mm) | 96.5 | 131.5 | 166.5 | 201.5 | 136.5 | 271.5 | 306.5 |
