Power steering distributor 50-3406015A
Classification:
Product Description
Features
★ Open center
★ Flow rate up to 25 L/MIN
★ Rated inlet pressure 80 BAR
★ Integrated safety valve
★ Mechanical control
The dispenser is designed to control the working fluid flow in tractors YUMZ-6, Belarus Series 50/52,80/82 and their modified power steering.
The power steering dispenser is designed to distribute the oil flow in the tractor's power steering to reduce the force on the steering wheel, as well as bypass the oil in the tractor's straight-line motion position, protecting the system from overloading. The power steering distributor provides mechanical and hydraulic communication between the steering wheel and the tractor idler.
Hydraulic valve with open center.
Built-in direct action safety valve.
Mechanical control.
50-3406015A Series Distributors for Special Applications
| Name | 50-3406015A |
| Type | Integral type |
| Rated size， mm | 10 |
| Flow (rated) | 16 |
| Flow (Maximum)， l/min | 20 |
| Pressure (rated)， MPa | 18.5+0.5 |
| Pressure (maximum)， MPa | 10 |
| Number of spools | 1 |
| Stroke from neutral to moving spool， mm | From 0.55 to 0.9 on both sides |
| Full-line axis stroke from the new position， mm | 1.2-0.03+0.11在两边 |
| Spool actuation type | machinery |
| Type of safety relief valve | Direct action |
| Pressure setting of safety valve， MPa | 9.0-0.5 |
| Weight， kg | 7.1 |

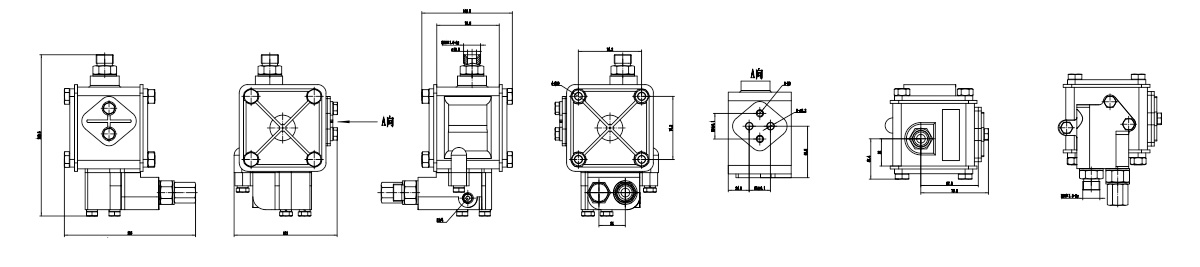

Shape and installation dimensions of power steering distributor 50-3406015A
