Interlocking crane control valve 80-4801200B
Key words:
Classification:
Product Description
Objective
The locking valve 80-4801200B is designed for hydraulic control of the locking mechanism of the rear axle differential of the tractor "BELARSE-900/920" and its modifiers.
Specification
| Parameter name | meaning |
| Sensor type | With rotary spool |
| Rotation angle of bobbin | 90° |
| Nominal diameter of rotary spool， mm | 16,0mm |
| weight， kg | Not more than1,55 |
Conditions of service
| Filter liquid | Kinematic viscosity mineral oil: Nominal value - 60 mm 2 /s Maximum value - 1000 mm 2 /s |
| Fluid temperature | +20° C ~ +80°C |
| Temperature | -40°C ~ +50°C |

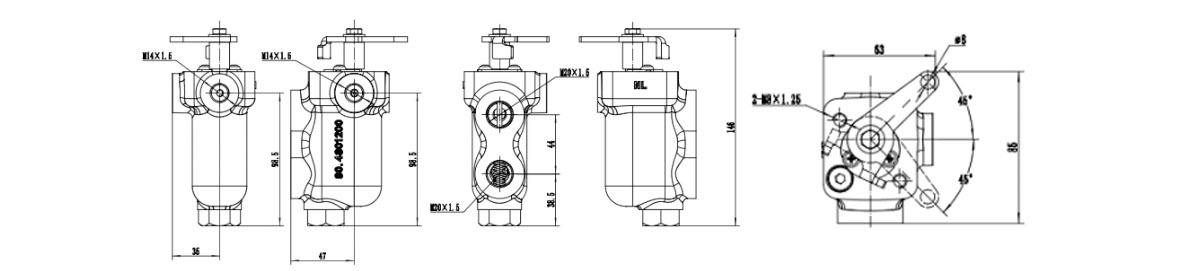

Interlocking crane control valve 80-4801200B outline and installation dimensions
